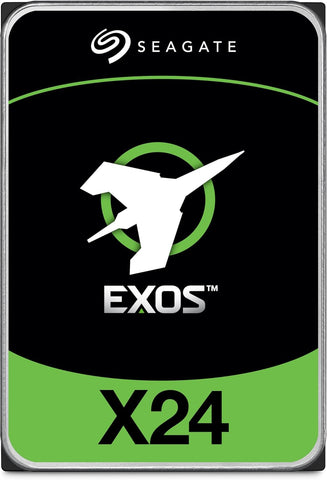

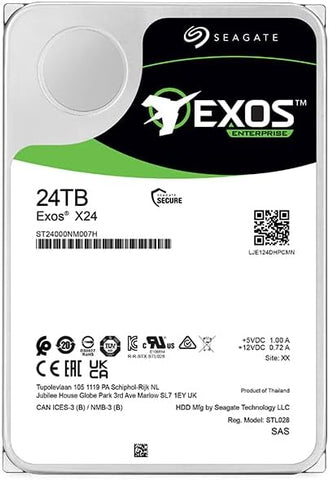

Seagate Exos X24 ST24000NM007H 24TB 3.5" 7200RPM 512MB Cache SAS HDD

Capacity: 24TB
Standard Model - Seagate Instant Secure Erase (ISE): ST24000NM007H
Interface: SAS 12Gb/s
FEATURES:
Helium Sealed-Drive Design: Yes
Conventional Magnetic Recording (CMR): Yes
Protection Information (T10 DIF): Yes
Super Parity: Yes
Low Halogen: Yes
PowerChoice™ Idle Power Technology: Yes
PowerBalance™ Power/Performance Technology: Yes
Hot-Plug Support1: Yes
Cache, Multisegmented (MB): 512
Organic Solderability Preservative: Yes
RSA 3072 Firmware Verification (SD&D): Yes
RELIABILITY/DATA INTEGRITY:
Mean Time Between Failures (MTBF, hours): 2500000hr
Reliability Rating @ Full 24×7 Operation (AFR): 0.0035
Nonrecoverable Read Errors per Bits Read: <1 in 10E15
Power-On Hours per Year (24×7): 8760
512e Sector Size (Bytes per Sector): 512, 520, 528
4Kn Sector Size (Bytes per Sector): 4096, 4160,4224
Limited Warranty (years): 5
PERFORMANCE:
Spindle Speed (RPM): 7200RPM
Interface Access Speed (Gb/s): 12.0, 6.0, 3.0
Max. Sustained Transfer Rate OD (MB/s,MiB/s): 285/272
Random Read/Write 4K QD16 WCD (IOPS): 168/550
Average Latency (ms): 4.16ms
Interface Ports: Dual
Rotation Vibration @ 20-1500 Hz (rad/sec²): 12.5
POWER:
Idle A (W) Average: 6.5
Max Operating, Random Read/Write 4K/16Q (W): 9.8, 8.2
Power Supply Requirements: +12V and +5V
ENVIRONMENTAL:
Temperature, Operating (°C): 10°C – 60°C
Vibration, Nonoperating: 2 to 500Hz (Grms): 2.27
Shock, Operating 2ms (Read/Write) (Gs): 40Gs
Shock, Nonoperating 2ms (Gs): 200
PHYSICAL:
Height (mm/in, max): 26.1mm/1.028in
Width (mm/in, max): 101.85mm/4.010in
Depth (mm/in, max): 147mm/5.787in
Weight (gm/lb): 685g/1.51lb
